MARSTEK V500

MARSTEK V500 at real size on a side table beside a wine bottle at a luxury resort lanai on a rainy night, powering a fan and a tablet
V500: Waterproof 500 W / 2 kWh Solar Generator with 500 W PV Input · Silvera Solar Power (AI-generated scene, official product design)

What it is: the V500 is a compact, IP65 waterproof, fanless solar generator with a 2,009 Wh LiFePO4 battery and a single 500 W pure-sine-wave AC outlet (230 V / 50 Hz per the datasheet and manual). It charges from a solar panel (MC4, 500 W max), from the grid (500 W), or from both together (750 W total), and can pass grid power straight through to the load (bypass).

Who it's for: households that want a plug-and-play brownout backup for small essential loads (router, lights, fans, phone charging, a small TV) without an electrician, and users who want something weatherproof and silent for outdoor use.

2,009 WhBattery (LFP)
500 WAC output
1,000 WAC peak
500 W maxSolar input
IP65Protection

Best for​

  • Essential-load brownout backup up to 500 W continuous: Wi-Fi router, LED lights, electric fan, phone and laptop charging.
  • Solar-only charging where there is no grid, or grid + solar charging for the fastest refill (750 W combined).
  • Outdoor or damp locations: IP65, natural cooling, rated to 4,000 m altitude.
  • Customers who want a silent unit (fanless).

Not for: running loads above 500 W rated (aircon, rice cooker, flat iron, water pump). The V500 will stop and enter protection. For those, see the M1200, M2200 or V6000.

Key features​

From the V500 datasheet and manual:

  • 500 W pure sine wave output, 1,000 W peak; one universal socket.
  • Flexible charging (manual §4.2):
    • AC IN only: 500 W.
    • PV only: depends on the solar panel (500 W max).
    • Dual (AC + PV): 750 W total. If PV is strong, PV is capped at 500 W and AC IN supplies 250 W. If PV is under 500 W, AC IN rises to keep the total at 750 W.
  • Simultaneous charging and discharging (manual §4.4):
    • AC IN + load: full bypass, so grid power supplies the load.
    • PV + load: PV supplies the load and the battery covers any shortfall.
    • AC IN + PV + load: grid supplies the load while PV charges the battery.
  • Wide input voltage range of 184–276 V for unstable grids.
  • 10,000+ cycles to 80% DOD (datasheet; see conflict note below).
  • MARSTEK app over Bluetooth or Wi-Fi (Android 6.0+, iOS 12.0+).
  • Battery protection: overcharge, over-discharge, overcurrent, over-temperature, short-circuit and overvoltage protection (manual §1.3).
  • Front LED panel: AC IN, AC OUT, 4-bar battery level, WARN (red on fault), PV, WIFI/BT.

Product views​

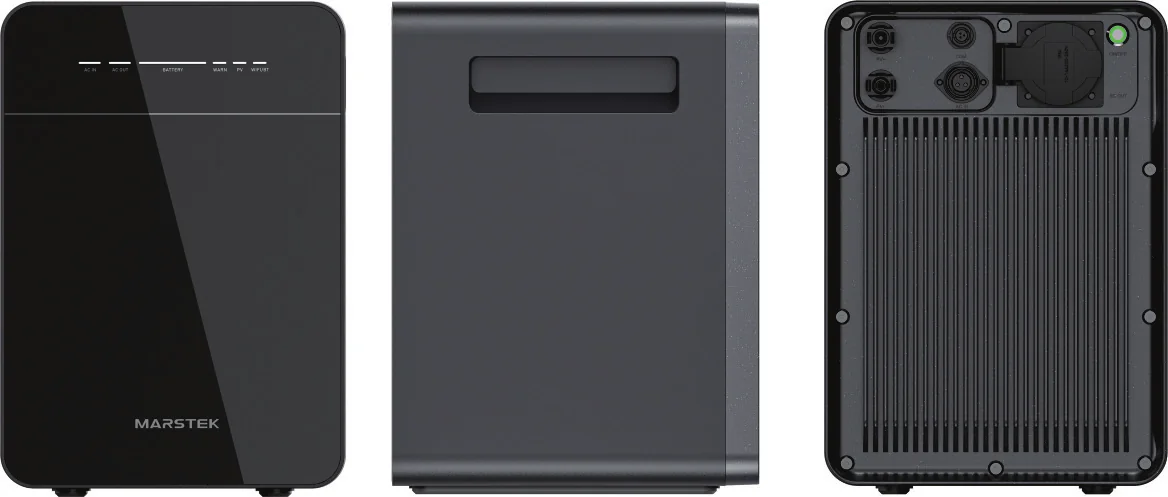

V500 renders: glossy black front with LED bar, side with carry handle recess, and rear with ports and heat-sink fins
Front, side and rear (ports and heat sink) · MARSTEK V500 datasheet

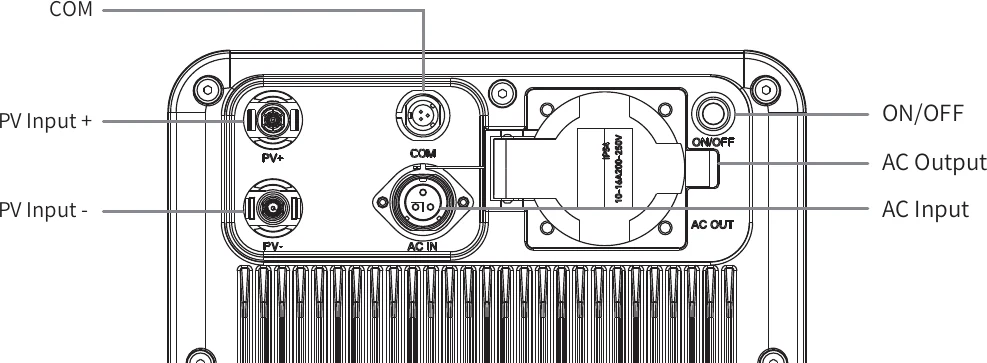

V500 interface diagram from the manual showing COM, PV input plus and minus, ON/OFF, AC output and AC input
Interface: COM, PV Input + / PV Input − (MC4), ON/OFF, AC Output, AC Input (BC05) · MARSTEK V500 manual §1.4

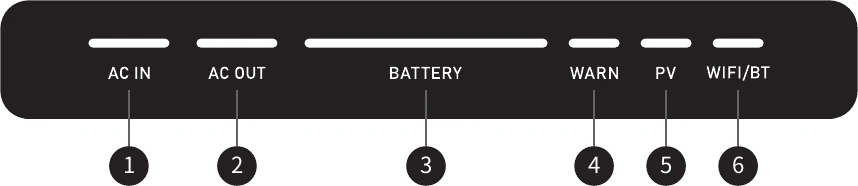

V500 LED panel diagram: AC IN, AC OUT, battery bars, WARN, PV, WIFI/BT
LED panel: 1 AC IN · 2 AC OUT · 3 Battery (0–25% = 1 bar … 76–100% = 4 bars; the top bar blinks while charging) · 4 WARN · 5 PV · 6 WIFI/BT · MARSTEK V500 manual §1.5

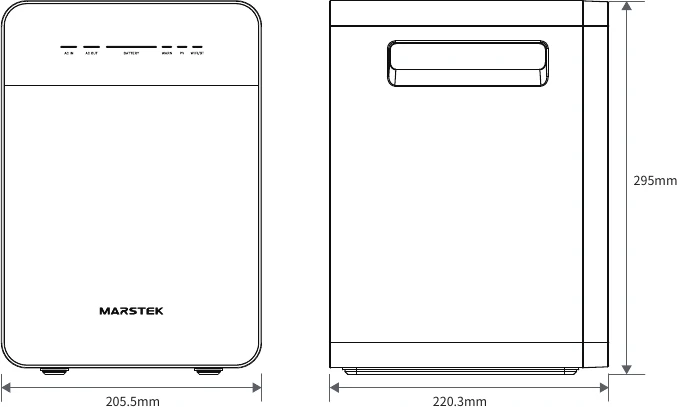

V500 dimension drawing from the manual
Dimension drawing: 205.5 mm wide × 220.3 mm deep × 295 mm high (the spec table says 290.0 mm high; see conflicts) · MARSTEK V500 manual §1.2

Specifications​

Source: V500 datasheet spec page (checked against the rendered image). Manual values that differ are noted below.

SpecificationDatasheet value
ModelMARSTEK V500
Battery
Battery capacity2,009 Wh (314 Ah × 3.2 V × 2S)
Battery chemistryLithium iron phosphate
Nominal voltage6.4 V
Life cycles (down to 80% DOD)10,000+
AC output
Inverter continuous500 W
Inverter peak1,000 W
Inverter typePure sine wave
Inverter voltage / frequency230 V / 50 Hz
AC output current2.2 A
AC output max. current2.8 A
AC output portSocket × 1 (universal socket)
DC (solar) input
Solar input channels1
Solar input power500 W max.
Solar input voltage12–60 V
Solar input current16 A max.
Solar input portMC4
AC input
Input voltage / frequency, rated230 V / 50 Hz
Input voltage range184–276 V
Input current3.3 A
AC in power750 W
AC charge power500 W max.
AC bypass power500 W max.
AC input portBC05 × 1
General
Operating temperature-10 °C to 50 °C
Storage temperature-20 °C to 60 °C
Relative humidity0–95%
Ingress protectionIP65
Protection levelI
Overvoltage / voltage withstand levelII
CoolingNatural cooling
Max. operating altitude4,000 m
Weight15.5 kg
Dimensions205.5 × 220.3 × 290.0 mm
Product certificationUN38.3 & MSDS

Additional values from the manual (§1.3, §1.4.1): solar start-up voltage 15 V, MPPT range 12–59 V, charging temperature 0–50 °C, weight 15.5 ± 0.5 kg.

Source conflicts
ItemDatasheetManualSRP flyer
Cycle life10,000+ (to 80% DOD)6,000 times (to 80% DOD)—
Solar voltage12–60 V (solar input voltage)12–59 V (MPPT range)—
Height290.0 mm290.0 mm in table; drawing shows 295 mm—
CertificateUN38.3 & MSDS"UN38.8" (likely a typo for UN38.3)—
Capacity2,009 Wh2,009.6 Wh"2.09 kWh LFP Battery" (likely a typo for 2.009 kWh)
Grid voltage / frequency230 V / 50 Hz230 V / 50 Hz—

The V500 documents only list 230 V / 50 Hz. The Philippine grid is 220 V / 60 Hz. 220 V is inside the stated 184–276 V input range, but no source confirms 60 Hz operation or a 220 V / 60 Hz output setting. Confirm with Silvera Solar Power / MARSTEK before promising this to a customer.

What's in the box (manual §1.1)​

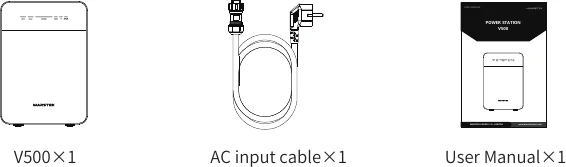

V500 packing list: V500, AC input cable, user manual
V500 × 1, AC input cable × 1, user manual × 1 · MARSTEK V500 manual

Price (SRP)​

V500 Solar Power Station SRP flyer showing ₱45,000
V500 Solar Power Station: ₱45,000 (original ₱50,000) · Silvera Solar Power redesign of the MARSTEK SRP flyer (product shown at real size; price and features unchanged, except the battery is shown as 2kWh to match the manual's 2,009 Wh instead of the flyer's 2.09kWh)

Per the SRP flyer in Drive, the V500 is ₱45,000 (original ₱50,000). Solar panels are not mentioned on the flyer. Confirm current pricing with Silvera Solar Power before quoting. See the price list.

Installation & safety​

The V500 is plug-and-play (no fixed wiring), but the manual still sets firm rules:

Do not overload

Do not power loads above 500 W rated. Overloading stops the V500 and puts it into protection. Exceeding the rated output may cause fire or injury.

  • Use: connect only officially certified electrical or electronic devices; use only MARSTEK-recommended or supplied accessories; unplug by the plug, not the cord.
  • Placement: dry, well-ventilated area away from liquids; keep vents and cooling parts unobstructed; never near open flames, heaters or flammable or explosive materials. Do not expose to temperatures above 130 °C.
  • Do not open: high voltage inside. Disassembly or repair only by qualified personnel. Wait 5 minutes after power-off before maintenance.
  • Handling: carry by the handles, upright. Do not drop from above 0.5 m; support it on stairs.
  • Power off: disconnect AC IN, PV+ and PV- first, then press and hold ON/OFF until the green ring turns off.
  • Storage: -20 to 60 °C, ≤95% RH, indoors, upright, at 50–60% SOC; top up every 1–2 months. Before reuse after long storage, charge to above 80% and check for heat or noise.
  • Routine check: inspect at least once every six months.
  • Children: keep out of reach; close adult supervision required.
  • Warranty: the manual says the period is "subject to the warranty card enclosed with the product". Confirm the local term with Silvera Solar Power.
